MAVO Prime T2.0 Large Format Cine Lens

From: $199

Fits [All cameras]

MAVO Prime is designed specifically for large format cinema camera. Superb optical quality, nearly no dispersion even the lens aperture is full. The lens supports 8K resolution on Full Frame. It is very easy to create shallow depth of field and the smooth focus fall-off cinematic images.

MAVO Prime shipping date is Nov 2018. You can also pay deposit to preorder the prime set.

Lens Mount
Lens Model

MAVO Prime is designed specifically for large format cinema camera. The optical quality is superb, and there is nearly no dispersion even the lens aperture is full. The diameter of image circle of all the lenses exceeds 46.5mm, which can cover MAVO LF/Venice FF, also cover RED Monstro VV/Alexa LF, and C700 FF. Also, it fits for cinema camera with S35 sized sensor. Besides, its ultra high MTF value supports 8K resolution on Full Frame. The T2.0 aperture with Large format cinema camera, it is very easy to create shallow depth of field and the smooth focus fall-off cinematic images.

sensor size com



Superb Optical Performance

The MAVO Prime lenses are designed to be colour balanced, colour-matched . They brings natural, solid and pleasing images. Benefit from APO (Apochromatic) design, there are nearly no any purple fringing, nor green fringing even at full aperture, so that the prime lenses offers natural color rendition for many challenging scenarios. MAVO Prime keeps breathing effect little, even 75mm and 100mm, the effect shows natural, not like still lenses. Besides, its ultra high MTF value supports 8K resolution on Full Frame, and make image very sharp and good contrast, with beautiful circles of confusion, natural focus transitions and highlight fall-off.

Super Compact Lenses for Large Format

Lightweight, compactness with high performance are cinema equipment evolution trend. MAVO Prime lens keeps very compact body: Front diameter of 3.7″(95mm) weight as 2.5~2.9 lb(1.1~1.3kg), uniform height as 4.5″(117mm) while the image circle diameter of 46.5mm, Aperture of T2.0 and superb optical performance. The size is even tough for S35 cinema camera, but Large format MAVO prime did it. So it works well for handheld and Steadicam, even drones.

robustness and reliability

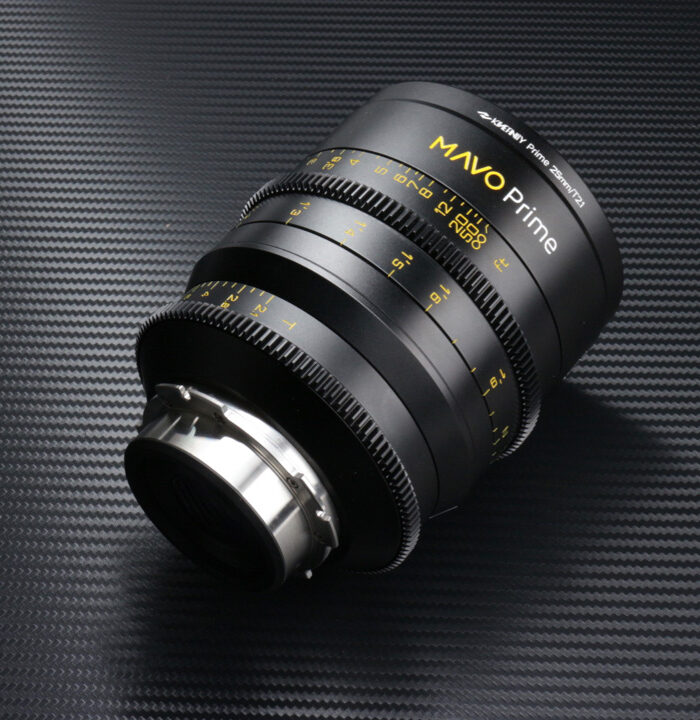

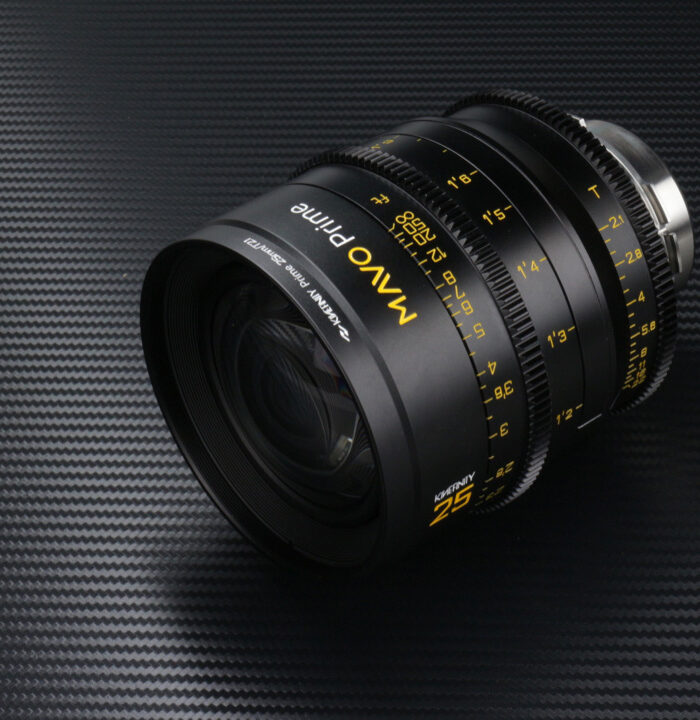

The cine-style focus and iris rings on MAVO Prime allow for smooth focus and iris adjustments. For all lenses, the focus/iris ring locations are exactly same for convenience in field shooting. The angle of focus rotation is 270 degrees, while the angle of iris rotation is around 70 degrees. The smooth and large-range iris ring provides continuous adjustment from T22 to T2.0.

Besides, there are two opposite linear iris scale in T, with 1/3 and 1 stop marks. Also every lens has two focus scale in footage, from infinity to MOD.

Multiple Rear Mounts

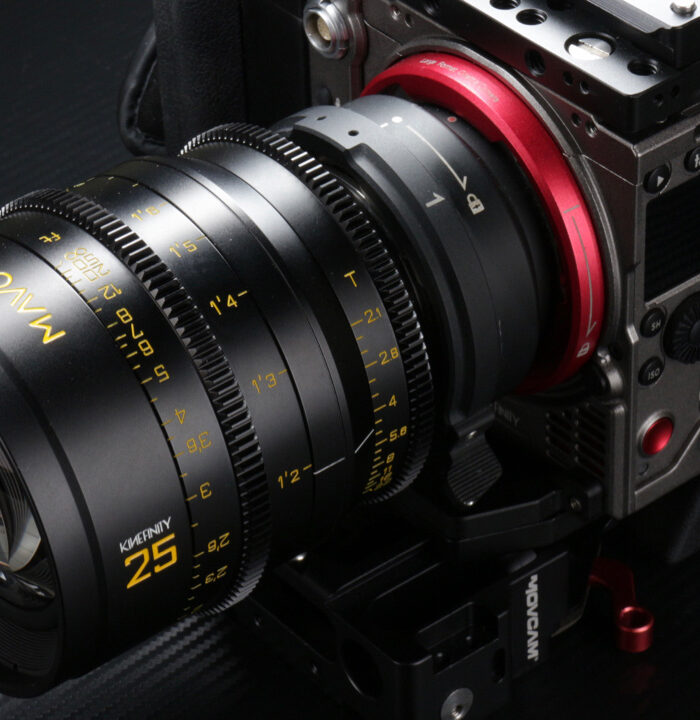

As standard cine lenses, MAVO prime has PL mount, and also provides canon EF and SONY E rear mounts option for customers, since the first camera of many indie filmmakers are full frame canon 5D2 or SONY A7.Like TERRA and MAVO, MAVO Prime lenses have industry-standard mount, also have very high flexibility and versatility.

100mm CF lens

MAVO Prime 100mm lens features close focusing ability, so it is called as 100mm CF(Close Focus). With MOD of only 56cm, the lens even could be used as quasi-macro lenses.

Shipping Info.

MAVO Prime Shipping date is 2018 May.

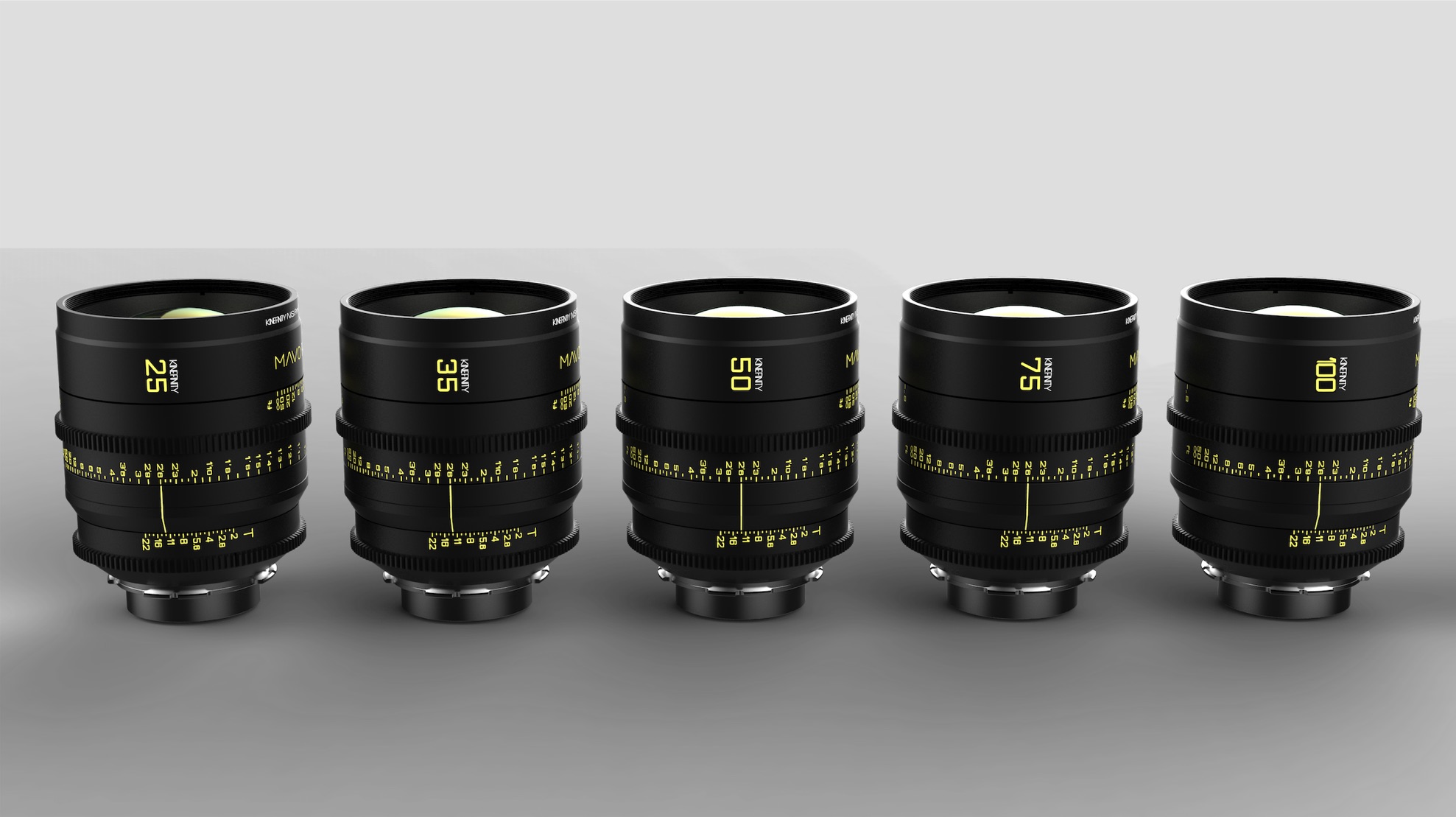

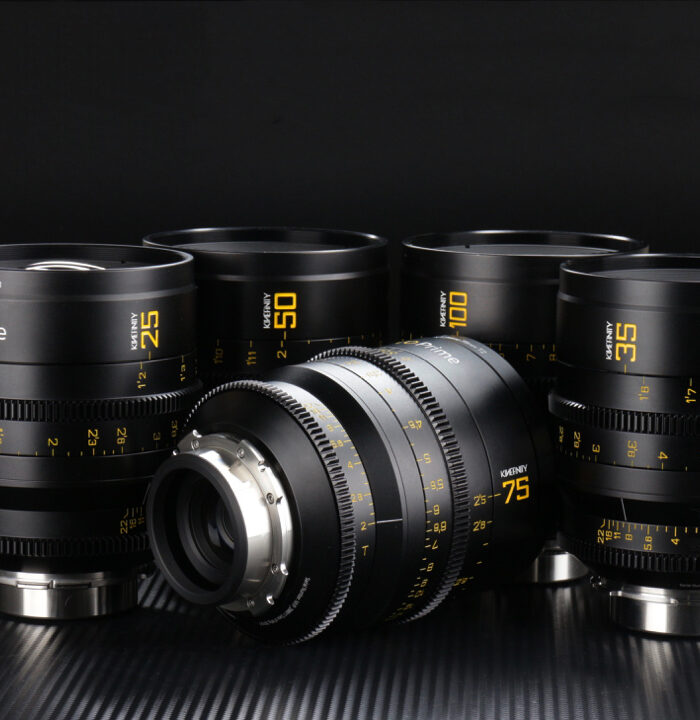

MAVO Prime is available for single lens, also a full set. As of full set, the checklist is following:

  • 25mm T2.1 Prime lens x1;
  • 35mm T2.0 Prime lens x1;
  • 50mm T2.0 Prime lens x1;
  • 75mm T2.0 Prime lens x1;
  • 100mm T2.0 Prime lens x1;
  • Solid case for MAVO Prime Set x1; Besides, there are three filters for free:
  • NiSi 4 x 5.65″ Black Pro-Mist 1/4 Filte x1;
  • NiSi 4 x 5.65″ Pro-Mist 1/4 Filter x1;
  • NiSi 4 x 5.65″ Polarizer Filter x1.

Preorder MAVO Prime as full set before Apr. 12, 2018 (2018 NAB), the discount off is US $500.


MAVP3

MAVO Prime Specification
25mm 35mm 50mm 75mm 100mm
Aperture T2.1~T22 T2.0~T22 T2.0~T22 T2.0~T22 T2.0~T22
Image Circle (Diameter) 46.5mm
Blades 12
Close Focus 8"/0.21m 12"/0.3m 17"/0.44m 27"/0.69m 22"/0.56m
Weight(PL Version) 2.9lb/1310g 2.8lb/1250g 2.7lb/1210g 2.5lb/1110g 2.7lb/1210g
Focus Rotation 270º
Iris Rotation ~70º
Front Diameter 3.7"/95mm
Length(From PL Flange) 4.5"/117mm
Max. Diagonal Angle of View, for Full Frame 82º 63º 47º 32º 25.5º
Max. Diagonal Angle of View, for S35 52º 39º 28º 19º 14.5º
