KineMINI 4K Body

From: $3,499

KineMINI is not so much an upgrade but a whole new model of Kine camera. Built-in Cineform codec, 4K RAW option and HiSpeed Option, SDI output, turns KineMINI into a much more professional cinema camera, not a toy, nor consumer electronic gadget.

Camera body does not contain the 4K option nor HiSpeed option; buy 4K RAW or HiSpeed separately if you need the options.

The difference of weight between steel KineMOUNT and Ti Alloy KineMOUNT is160g.

Mount
Colour

KineMINI is upgrade version of KineRAW-MINI. Actually, KineMINI is not so much an upgrade but a whole new model of Kine camera. Built-in Cineform codec, 4K RAW option and HiSpeed Option, SDI output, turns KineMINI into a much more professional cinema camera, not a toy.

Buy Kine camera, you will get One-Year renting of Well-Known Assimilate Scratch, for free. For later renting, just need $199 per year (non-Kine user, $650); or permanent license as $995 (non-Kine user, $3000).




4K

Native 4K Sensor;
4K RAW In-camera Recording;
Covering all resolution from 576p, 720p, 1080p, 2K to 4K;



100fps

1080p@96fps, 1080p Flat@120fps at S35mm Frame;
Slow-mo and Quick-mo, 0.001fps;
2K@48fps, 1080p@50fps at S16mm Frame;
Down to 6fps.



Built-in Cineform RAW

In-camera recording 2K Cineform RAW;
Occupy less room than ProRes422HQ;
lap-top with i3 can edit Cineform RAW mov smoothly.



KINESTATION

KineStation + KineCamera = Kine Hybrid System(KHS);
KHS covers from frontend to backend;
KineStation transcoding from RAW to RGB444, ProRes.

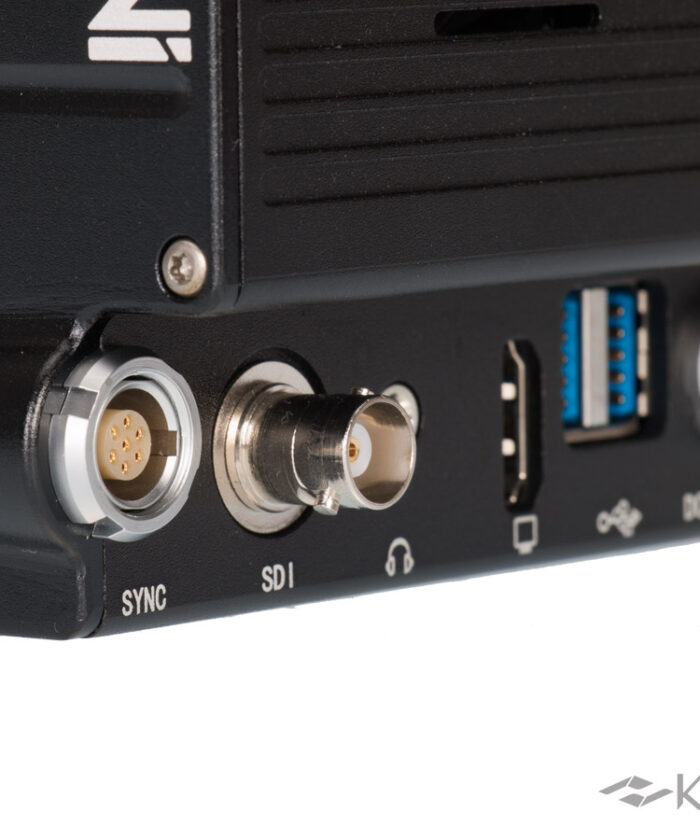

3G SDI and HD Display monitoring

Two HD display monitoring;
One 3G SDI monitoring option;
Three monitoring paths to meet requirements of field monitoring



SPORT

Sport Mode: like Global shutter for 2K;
Cineform RGB444 by KineStation;
Fit for handheld and documentary.





S35mm

Super35mm sized CMOS sensor;
No trouble with conversion ratio;
Shallow FOV like film.



New OLPF and Improved Color Science

New OLPF optimised for 4K recording;
Nearly NO SAW, Moire, alaising @S35mm 2K;
Improved Color Science for native recording.

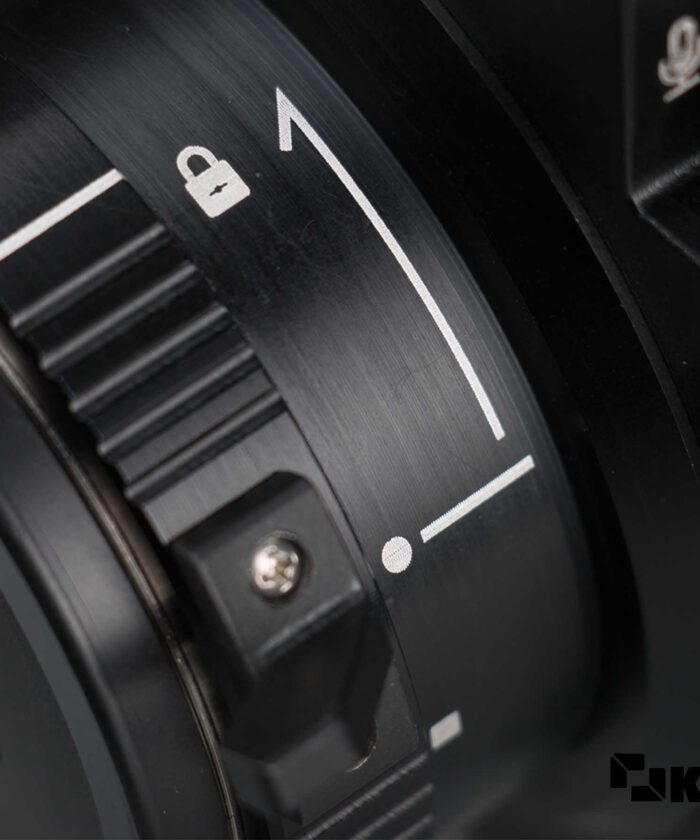

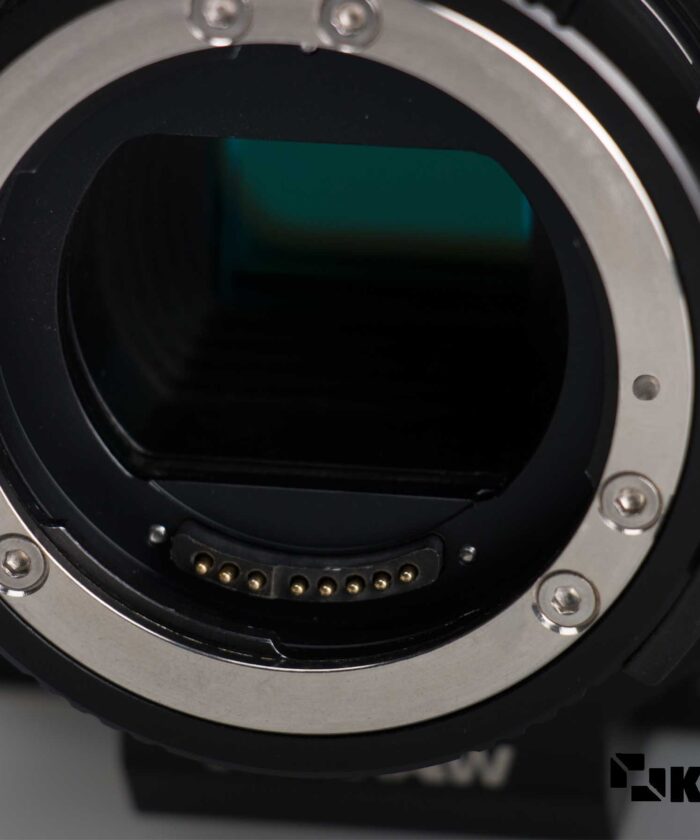

New Lock-Style EF/F mount

Like Cine PL mount, truly Cinema way;
Lock firmly, nearly no spacing;
Fits for Video usage, for follow-focus gear.



N

Nearly all lens using KineMOUNT;
Canon EF L lens/Nikon AIS lens;
PL lens, OCT-19 lens;
B4 broadcasting lens.





20480

ISO up to 20480;
Base ISO as 800;
Custom Highlight level, Support EI and ISO.



>13

Over 13 f-stops @2K;
Remain highlights as you want;
Capturing super range of light latitude.




Note: Camera body and following basic, standard, professional package do not config the 4K and HiSpeed options. You need to buy 4K RAW Option or HiSpeed Option if you want 4K recording or HiSpeed option. Please details in section of How to Config KineMINI.


Recommend following packages to save money and time:

  • KineMINI Configuration

  • KineMINI Body
    1. Active EF Mount or KineMOUNT
    2. Black or Titanium Grey
    KineMINI Body
    1. Active EF Mount or KineMOUNT
    2. Black or Titanium Grey
  • Built-in Cineform RAW mov/KineStationBuilt-in Cineform RAW mov/KineStation
  • SCRATCH One-Year RentingSCRATCH One-Year Renting
  • Single 3G-SDI Monitoring OutputSingle 3G-SDI Monitoring Output
  • WIFI Control OptionWIFI Control Option
  • KineMAG+500GBKineMAG+500GB
  • Kine AC-DC AdapterKine AC-DC Adapter
  • Kine D-TAP Power CordKine D-TAP Power Cord
  • SmallHD AC7-LCD HDMI MonitorStandard as HDMI, SDI as Option, Movcam Cineroid EVF Bracket as OptionSmallHD AC7-LCD HDMI Monitor
  • 6' Strong ArmWith Movcam Alphatron EVF Bracket6' Strong Arm
  • SmallHD 501 HDMI Monitor + SidefinderSmallHD 501 HDMI Monitor + Sidefinder
  • 7.4V power cord (D-TAP, LP-E6)7.4V power cord (D-TAP, LP-E6)
  • Movcam EVF Bracket (Full)Movcam EVF Bracket (Full)
  • Movcam upper handleWith two clamping rings and two 200mm RodsMovcam upper handle
  • Movcam KineKIT_MINIBasic KIT from From MovcamMovcam KineKIT_MINI
  • Movcam Battery Plate (MOCO version)Push-Pull version. Come with: one power cord to KineMINI specifically, one 12V power cordMovcam Battery Plate (MOCO version)
  • Body

  • US$3,499

  • KineMINI Body
    1. Active EF Mount or KineMOUNT
    2. Black or Titanium Grey
    yes
  • Built-in Cineform RAW mov/KineStationyes
  • SCRATCH One-Year Rentingyes
  • Single 3G-SDI Monitoring Output
  • WIFI Control Option
  • KineMAG+500GB
  • Kine AC-DC Adapter
  • Kine D-TAP Power Cord
  • SmallHD AC7-LCD HDMI Monitor
  • 6' Strong Arm
  • SmallHD 501 HDMI Monitor + Sidefinder
  • 7.4V power cord (D-TAP, LP-E6)
  • Movcam EVF Bracket (Full)
  • Movcam upper handle
  • Movcam KineKIT_MINI
  • Movcam Battery Plate (MOCO version)
  • Standard

  • US$4,999

  • KineMINI Body
    1. Active EF Mount or KineMOUNT
    2. Black or Titanium Grey
    yes
  • Built-in Cineform RAW mov/KineStationyes
  • SCRATCH One-Year Rentingyes
  • Single 3G-SDI Monitoring Outputyes
  • WIFI Control Option
  • KineMAG+500GBOne KineMAG-120GByes
  • Kine AC-DC Adapter
  • Kine D-TAP Power Cord
  • SmallHD AC7-LCD HDMI Monitoryes
  • 6' Strong Armyes
  • SmallHD 501 HDMI Monitor + Sidefinder
  • 7.4V power cord (D-TAP, LP-E6)
  • Movcam EVF Bracket (Full)
  • Movcam upper handleyes
  • Movcam KineKIT_MINI
  • Movcam Battery Plate (MOCO version)yes
  • Professional

  • US$6,499

  • KineMINI Body
    1. Active EF Mount or KineMOUNT
    2. Black or Titanium Grey
    yes
  • Built-in Cineform RAW mov/KineStationyes
  • SCRATCH One-Year Rentingyes
  • Single 3G-SDI Monitoring Outputyes
  • WIFI Control Optionyes
  • KineMAG+500GBOne KineMAG-120GByes
  • Kine AC-DC Adapteryes
  • Kine D-TAP Power Cordyes
  • SmallHD AC7-LCD HDMI Monitor
  • 6' Strong Arm
  • SmallHD 501 HDMI Monitor + Sidefinderyes
  • 7.4V power cord (D-TAP, LP-E6)yes
  • Movcam EVF Bracket (Full)yes
  • Movcam upper handle
  • Movcam KineKIT_MINIyes
  • Movcam Battery Plate (MOCO version)yes

KineMINI is lightweight and solid digital cinema camera, while much more powerful and versatile tool for 35mm like Cinematography compared to KineRAW-MINI. With more professional accessories, KineRAW-MINI can be configured as full function cinema tool easily.


RESOLUTION, FRAME RATE AND CODECS
Format Resolution MAX FPS Cineform KineRAW CinemaDNG
S35 DCI 4K 4096x2160* 30
DCI 4K Scope 4096x1716* 30
Ultra HD 3840x2160* 30
Ultra HD Wide 3840x1716* 30
DCI 2K 2048x1080 30
DCI 2K Scope 2048x858 30
Full HD 1920x1080 30
Full HD Wide 1920x858 30
HD 1280x720 100
M4/3 3K 4:3 Anamorphic 2880x2160* 30
3K HD 2880x1520* 48
3K HD Wide 2880x1208* 60
HiSpeed S35 DCI 2K 2048x1080 92**
DCI 2K Scope 2048x864 120**
Full HD 1920x1080 96**
Full HD Wide 1920x864 120**
S16 DCI 2K 2048x1080 60
DCI 2K Scope 2048x860 75**
Full HD 1920x1080 60
Full HD Wide 1920x860 75**

Notes:

  1. * Means 4K Option;
  2. ** Means HiSpeed Option;
  3. Frame Rate can be adjusted as 6~MAX fps, step accuracy of 0.001fps.

TECHNICAL SPECIFICATION
Camera Type S35 Film-Style Digital Cinema Camera
Sensor Type Super 35mm 4K CMOS
Lens Mount New Lock-Style EF Or Steel KineMOUNT
Record Formats Codec Type Codec Format Output
Compressed RAW KineRAW(.krw) 12bits All resolution
Uncompressed RAW CinemaDNG(.dng) 12bits All resolution
Compressed RAW Cineform(.mov) 12bits 2K or Below
Record Resolution 4K 3K(4:3*) 2K Full HD
4096x2160 2880x2160 2048x1080 1920x1080
Dynamic Range >13 f-stops >13 f-stops @binning2K >12 f-stops @4K
ISO Max Exposure Base MAX
80 800 20480
Shutter Angle 0.7°~358°
Monitoring HD Digital Portx2 SDIx1
1080p/720p 1080p/720p *SDI as option
Sync Function Tally, AutoSlate, Beeper, 3D/Multi-cam Sync *3D/Multi-cam Sync is Optional
LUT Preset: KineLOG/Kine709/KineColor, Support User-Defined LUT
Audio Capture 3.5mm MIC (Mono) No Phantom 48V Support
Record Media 2.5' SSD (x1 SSD Slot)
Power DC IN Consumption
6~19V 20W
Weight (Only Body) 1.5Kg(EF)/1.9Kg(KineMOUNT) *Only Body, no Handgrip, no SSD
Size (WxHxL, mm) 94x118x199.5(EF)/94x118x176.5(KineMOUNT) *Only Body, no Handgrip, *Without projections
Operating Temp 0°C to +40°C
Notes:
  1. ALL SPECIFICATIONS SHOWN ARE PRELIMINARY AND SUBJECT TO CHANGE WITHOUT NOTICE;
  2. Any other trade marks belong to their respective owners.

KineMINI 4K in Las Vegas

Back to You Learn More

Cameraman: ActionPai-37, Michel; Location: Las Vegas (United States)
Camera: KineMINI 4K x2: one is KineMOUNT+PL mounting, the other is native EF mounting;
Lens: Sigma 18-35mm f1.8; Leica 50mm, f1.4(GL Modified); Tokina 11-16mm f2.8(GL Modified)
Day: ISO 320; Night: ISO 640, 800, 1280.
Record Format: Uncompressed CinemaDNG 4096×2160@24fps; KineRAW(.krw) 2048×1080@96fps

Cinderella

Cinderella / TVC Maybelline NY Learn More

Cameraman/DoP: BonBon;Director: ZERO; Art: Zhiling Zhou; Location: Shanghai (China);
Camera: KineMINI 4K;
Lens: Cooke S5i Prime Set;
Codec: 2K Cineform RAW mov; ISO: 800;



You can configure your KineMINI based on your current Lens, Accessories, monitors and Budget, because KineMINI adapts general display ports, wide range input voltage, and mounting options.

1. Color and Mount Options Check Available Mounting adapters


For the color of camera body, you could choose Black or Titanium Grey. Attention, The exterior color of mount  is black or steel anyway.

For the choice of mount, it depends on your lens resources and consideration of future usage.

  1. Body with Native Active EF mount: support iris-control for majority of EF lens.  KineRAW displays Iris number and tune it directly. Also you can just disable electronic active EF mounting adapter so that protects it from all-metal lens backend. It is an economical choice if your all lens are EF lens. Check the compatible lens white list
  2. Body with KineMOUNT: can be regarded as omni-mount system. If you have EF lens, and PL mount lens, or may rent PL mount lens in future, your best choice is to buy body of KineMOUNT. KineRAW-MINI with PL mount may be most economical PL cinema camera so far.

As long as you choose KineMOUNT camera body, you could get max freedom for lens choice: you may be able to use all kinds of lens for S35mm:

  1. If you use Canon EF lens, need to buy Active EF mounting adapter (Active K2EF);
  2. If you use Nikon len, need to buy Nikon mounting adapter (K2F);
  3. If you use PL cine lens, need to buy PL mounting adapter (K2PL);
  4. If you use B4 mount lens, need to buy B4 mounting adapter (K2B4);
  5. If you have OCT-19 lens, need to buy OCT-19 mounting adapter (K2OCT19).

Every mounting adapter or mount from Kinefinity is all lock-type mount, like cinema PL mounting lock way. It provides much better stability; fits very well in professional way when video shots using follow-focus gear.


2. In-camera Options Check In-camera Options


In-camera options, means they are built-in before shipment. You need to return camera body to Kinefinity for later purchase. It may take 3~5 working days for it.

  1. 4K Recording Option: KineMINI Can record uncompressed 4K RAW CinemaDNG and compressed lossless DNG too. You can use the DNG directly, or employ free KineStation to transcode DNG into 4K Cineform RAW mov, RGB444 mov, 4K ProRes422HQ mov. It does not need to return Camera back to factory to upgrade the option so that you can purchase it and upgrade it after you bought camera.
  2. HiSpeed Option: is a special mode for sensor capturing high speed objects. Its codec is same with sport mode as compressed lossless RAW sequence named as KNG by Kinefinity. It can capture 1080p slow motion up to 100fps, and no recording time limit till your KineMAG full.
  3. 3G SDI Monitoring Option: supports SDI monitoring output for broadcasting monitors, the resolution is same as HD display output as 1080p or 720p.
  4. 3D SYNC Option: KineMINI can take real 3D shots. Just one SYNC cable to connect two KineMINI SYNC port, set up Master and Slave instantly. 3D SYNC means: Scan sync, frame sync and time code sync, less than 5uS of mismatch!
  5. WIFI Control Option: Control camera by wifi control app (KineRemote) on iPad now. Download App directly from Apple App Store.


There are many available accessories for KineMINI camera: not only from Kinefinity, but also from third-party companies, off-the-shelf, qualified and measured by Kinefinity:

  1. High-speed, reliable and professional KineMAG SSD;
  2. Multi-function control and battery holder: KineGrip;
  3. Movcam basic KIT, specially for KineMINI: KineKIT;
  4. Maybe best third-party EVF: Alphatron EVF;
  5. High performance-to-price ratio EVF: Cineroid EVF4C ;
  6. KR-MINI power cord: D-Tap to MINI Power Cord;
There are more accessories as follows:
  1. More KineMINI Accessories from Kinefinity,including cables, solid cases, etc.;
  2. More Movcam General Accessories, including follow-focus, Matte-box, quick plate, power plate, etc. ;
  3. More Third-party high quality accessories,like professional wireless monitoring solution, De-noise software, Resolve Tutorials, etc. ;
