EF Mounting Adapter II


Fit: [MAVO and TERRA]

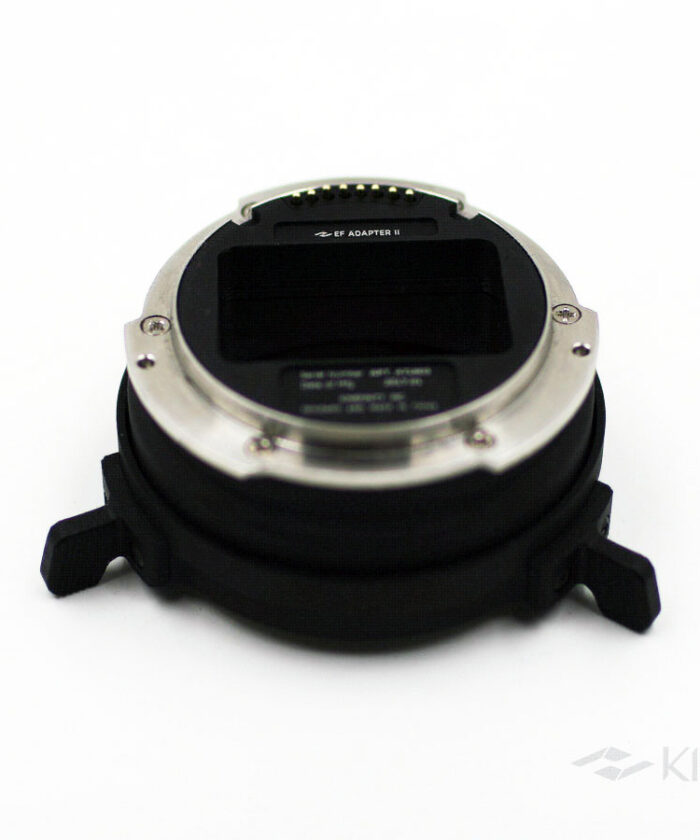

Newly designed EF mounting adapter for MAVO and TERRA, supports most EF lenses on MAVO and TERRA.

Cordless, lightweight and electronic protection are the main features making the new adapter superior than the previous versions.

Categories: , . Tags: , , .

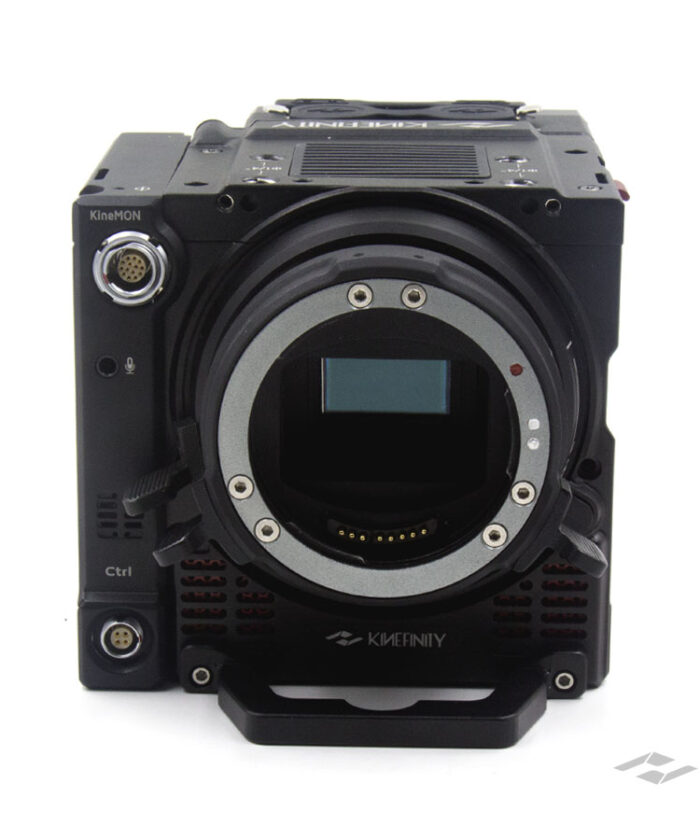

Newly designed EF mounting adapter enables MAVO/TERRA to support most EF lenses right after you mount it on KineMOUNT. (Please visit and buy the  EF Mounting Adapter II with KineEnhancer if you want to shoot with Full Frame lenses.)

It is quite easy and reliable to mount EF adapter to KineMOUNT, just like attaching an EF lens to an EF mount.

  1. New locking type mounting system: improve mechanical performance greatly;
  2. Cordless: the new adapter needs no cord when mounted on KineMOUNT;
  3. Hot-swap: change your lenses while the camera is on;
  4. Electronic contacts: Support majority of EF lens with Iris control;
  5. Simple but reliable connection: the new mounting adapter matches KineMOUNT perfectly without any cord;
  6. Lightweight: specially designed for MAVO/TERRA, it weighs only 150g, but still reliable and robust.

EF Lens Compatible White-List: EF LENS COMPATIBILITY

Attention: Power down camera when swapping different adapters, else camera or adapters may be burned.

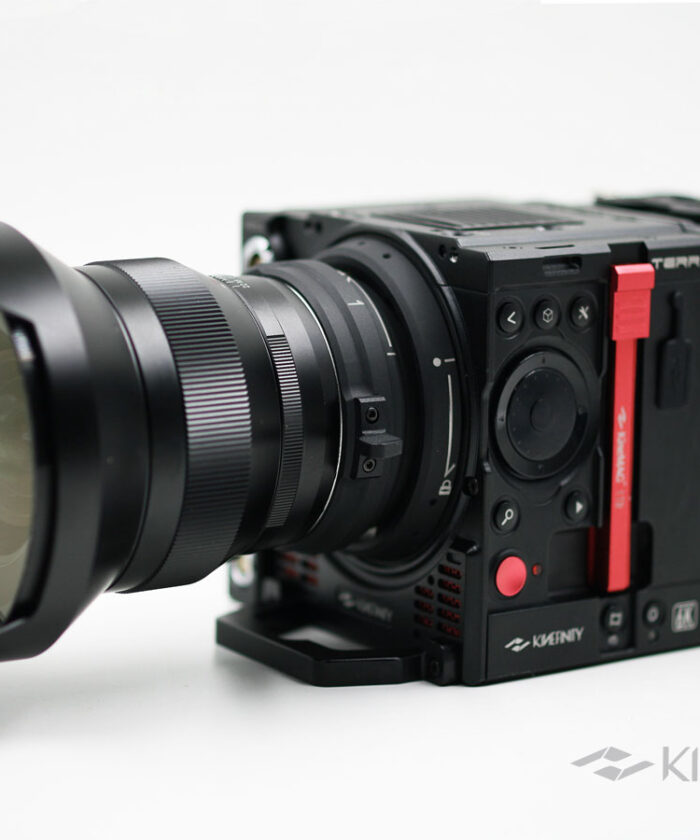

How to Attach the EF lens to the EF mount?

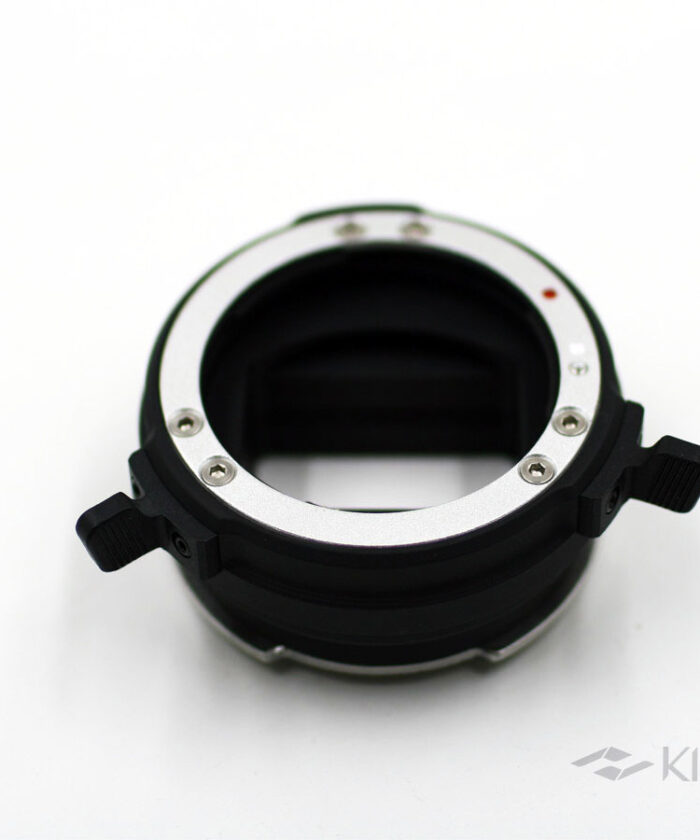

Steps of attaching EF lens to lock-style EF mount as following, are very different from DSLR lens and camera:

  1. Rotate locking ring of EF mount clockwise till stop;
  2. Take off all the caps or covers from camera and lens mount;
  3. Align red dot on lens, white line on locking ring and dot on mount. And make sure that the pin on mount matches the hole of lens;
  4. Rotate locking ring (NOT lens) counter-clockwise until fastened firmly.

Note: please hold the lens to prevent the lens from dropping accidentally when loosening the locking ring to remove the lens.

FAQ for EF Mounting Adapter II

Yes, if the adapter is regular EF mounting adapter.

No, if the adapter is KineEnhanced embedded.

No, if the adapter is regular mounting adapter, since MAVO 6K/TERRA 4K configs with S35 or sub-S35 CMOS sensor.

Yes, if you choose the adapter with KineEnhancer.

It supports ZE lenses, also new Milvus lenses.

Please refer to EF Lens Compatible White-List: EF lens compatibility

No, the Mounting Adapter II has circuit protection.

Note: FFD of KineMOUNT is very short, and the mount looks like PL mount. NEVER try to attach any lens into the KineMOUNT directly, in case the rear of lens bump into the CMOS sensor, which leads to permanent damage.

    1. Power down: Power down camera at first when remove or install any mounting adapters;
    2. Release: Rotate the locking ring of KineMOUNT in Counter-Clockwise way;
    3. Install the adapter to KineMOUNT: when attaching the mounting adaptor to KineMOUNT, please ensure the two holes in the adaptor match the two pins of KineMOUNT;
    4. Lock: Rotate the locking ring of KineMOUNT to fasten adapter with KineMOUNT firmly in Clockwise way.Power on camera after mount the adapter. Press “CONFIG” and check the bottom of this menu, if it presents EF sys 9(or other number), it means you have mounted the adapter successfully.

Not so far.

For camera mounted with compatible lens, rotate the Multifunction Wheel to adjust the iris. If camera is equipped with SideGrip, the Multifunction Wheel on the SideGrip can also be used to control iris.
